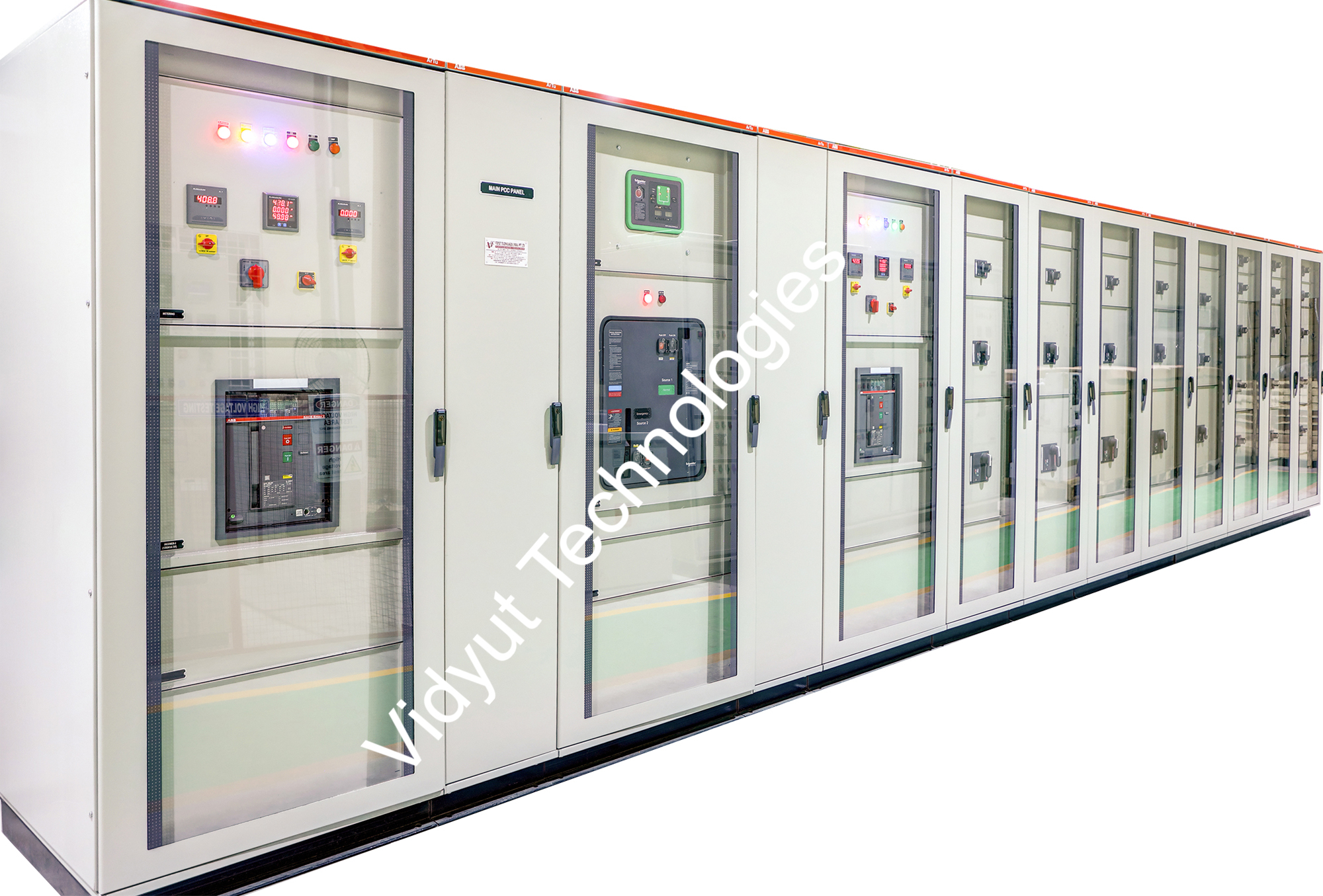

ABB ArTu Technical Highlights
Construction: ABB ArTu Panel is made of 275GSM (Galvanized Iron) sheet, which offers Non corrosive and long life to Panel structure.
Double door protection, having front door of 6mm Thick special Toughend Glass. Having Better Protection from moisture and dust to the Switchgears Parts.
Compliance with Standards IEC-61439 Part 1 & 2
Test of Vibration for Structure: According to IEC-60068-2-57 Standard
Test of Anti Seismic: According to IEE Std. 693 Standard
Tested for Internal Arc as per IBC 60641 for 65KA for 0.3 Seconds
Rated Impulse Withstand Voltage (Uimp)-12kV
Rated Current In - Up to 6300A
